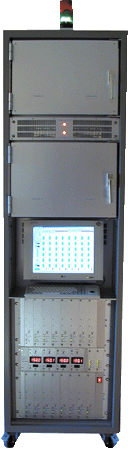

HTRB / HTGS TEST SYSTEMS for standard MOS or IGBT devices

Our test systems fulfil the 4 fundamental requirements on HTRB/HTGS systems for power MOS or IGBT devices

Exact case temperature of DUT independent on reverse power losses of tested devices
Reliable device sockets designed for 200°C
Continous measurement of DUTs to find DUTs with rising leakage current before destruction
Separate power supply foe each test board to run different devices in the same chamber

Test chambers :
Number of chambers :	4
Temperature range :	50°C to 200°C
Uniformity ratio of temperature in range of test boards :	150°C ± 1.2K 175°C ± 1.6K 200°C ± 2.5K
Maximum power dissipaton per test chamber :	150°C --- 145W 175°C --- 170W 200°C --- 200W
Test boards :
Possible size of test boards :	198 x 430mm 250 x 400mm
Number of boards in chamber :	4
Power supply :
Number of power supplies per test board :	2
Possible voltage range for HTRB :	0V to ± 300V 0V to ± 500V 0V to ± 1200V
Voltage range for HTGS :	0V to ± 60V

Operating system :	MS Windows XP
Handling :	Comfortable graphic platform
Alarm :	Programmable, light or sound
System control :	Continous for voltages and oven temperature with alarm and disconnection of defects parts
DUT control :	Continous for bias voltage, leakage current and socket contacts with alarm and disconnections of test board by values over programmable limits

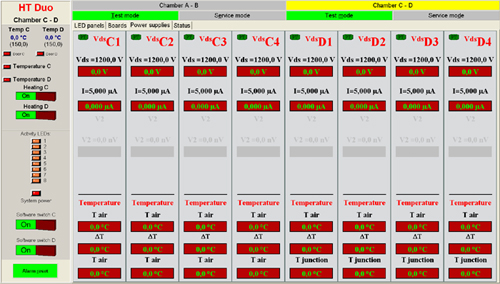

graphic platform
